In packaging processes, intralogistics, or in the automotive industry, the presence control sensors frequently need to meet a number of requirements. They must consistently identify things, be simple to install, and, most importantly, be cost-effective.
This is why Leuze has developed the new 5B sensor series. They convince with their flexible handling and offer high level of cost effectiveness. These are often decisive arguments in cases where a system requires a large number of sensors. Leuze offers the sensors as retro-reflective photoelectric sensors, throughbeam photoelectric sensors and diffuse sensors. The 5B series is certified to degree of protection IP 67 and ECOLAB.
Fast alignment and startup

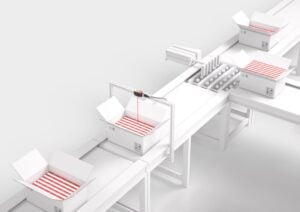

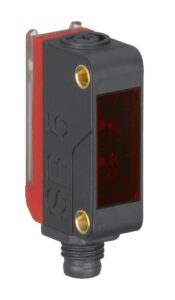

With their compact housing (11 x 32.4 x 20 millimeters; W x H x L), the sensors are ideal for situations with limited installation space. As a result, they can be installed close to conveyor lines, for example. Furthermore, the 5B series is compatible with the predecessor series in terms of mounting. This makes modernization easier. The metal inserts with M3 thread also contribute to easy installation. Configuration is simple too: Thanks to the user-friendly potentiometer, system operators can quickly adjust the sensors and adapt them to changing conditions at any time.

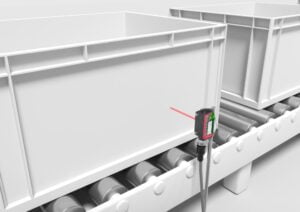

The homogeneous and clearly visible light spot makes the sensors easy to align. Various electrical connection options, e.g. by cable, M8 connector or pigtail, help maximize flexibility. A further advantage with regard to installation and status display is the 360° visible LED indicator.
The sensors for presence control also detects glossy objects
The 5B series for the sensors for presence control reliably detect even depolarizing objects such as reflective, shrink-wrapped or glossy objects. The throughbeam photoelectric sensors operate at a switching frequency of up to 900 Hz and thus offer a high performance and function reserve.
The operating range of this model is up to 15 meters, and up to 6.5 meters in the case of the retro-reflective photoelectric sensors. The diffuse sensors operate with a switching frequency of up to 1,000 Hz. Last but not least, Leuze has also thought about protection against unwanted access: the light/dark switching of the switching output is possible in a tamperproof manner by means of the wiring.
