The x-ray system by Mesutronic conceived for the examination of packed products. (video: Mesutronic)
Metal detector and X-Ray inspection systems are produced by Mesutronic Gerätebau GmbH. The company produces innovative and sophisticated metal detection technology for industrial applications for more than 25 years.
The contamination detection is applied in food, pharmaceuticals, hygiene, plastic, textile, wood and mining with a wide range of products.
Metal detector and separator for highest purity in producion
Metal detector, separators and complete systems for all processes, adapted to products, for processing equipment and ready for data transfer to quality management program.

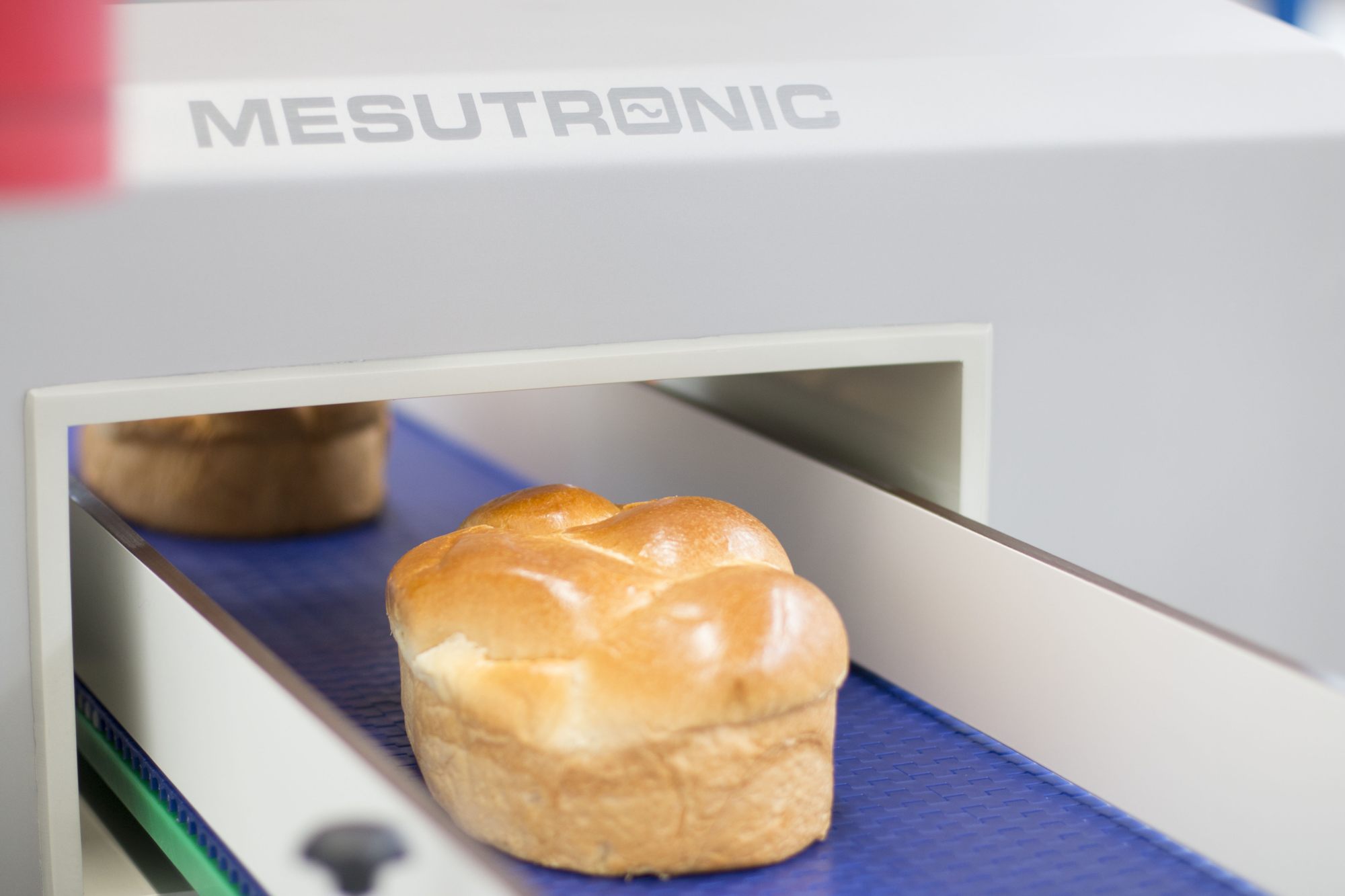

Metal detector Metron C: easy to integrate in production
Metron metal detectors can be easily integrated into production process. Special versions such as “SlimLine” and “RMFA”, are available for difficult applications such as low headroom or extraordinary peripheral effects.
Mesutronic metal detectors are also available as a system solution in combination with a Transtron conveyor and an optimized separation system.
The metal separator Quicktron for bulk materials
Quicktron metal separators examine bulk materials such as granulates and powders in free fall. The ideal reject technology with digital 2 channel metal signal evaluation assures optimum safety, from receiving to shipping.
The time required to eject contaminated product is minimized. This reduces loss of material and associated costs. Compact dimensions and standardized connections allow trouble free integration into existing system.
Metron with different systems: CR, Powerline, Flatline
- Metron CR with mounting device, plastic tube and flange connections.
- Metron Powerline for simplest integrating into existing production systems without mounting frame, and additional plastic tube.
- Metron Flatline which require extreme small installation space and are therefore ideal for fitting between the multihead weigher and vertical bag filling machine.
P-TRON-GM for preumatic pressure and vacuum conveying systems
The Mesutronic series for pneumatic pressure and vacuum conveying systems is P-TRON-GM. Full throughput during reject events with the Mesutronic “Bypass” solution.
Minimal loss of good material with “Positive Speed Control” from Mesutronic. The integrated technology senses the conveying speed of the contaminant and calculates the exact reaction and dwell time of the reject flap.
Pipeline / Meatline for pasty, viscous and liquid products (pump lines and sausage fillers)
The Mesutronic systems solutions for monitoring pasty, viscous and liquid products. Ideal for the safe and reliable separation of metal impurities from pressurised delivery lines.
“Pipeline” versions for integration into pump lines are also available as are various “Meatline” models for attachment to vacuum sausage fillers which have been developed in close collaboration with professionals from the meat and sausage processing industries.
Metal separator for pharmaceutical products: Pharmatron
Pharmatron is the Mesutronic metal separator for pharmaceutical products such as tablets and capsules. Especially well suited for high processing speeds and quick product change.
Parts which are in contact with the product can be cleaned in 3 easy steps without tools. Deliverable in combination with deduster systems without chassis.
Metal detector and metal separator, the heart is the evaluation electronic
The heart of every metal detector and metal separator is the evaluation electronics.
They determine the quality of the detection results and control all device functions precisely and reliably. Two variants of the electronics are available.
Depending of the application and task, Mesutronic recommends either its high-end digital versions with colour touch-screen display or digital version with graphic display and 4-button operation.
Autobalance, temperature compensation, self-monitoring, multi-function noise filter and product effect masking are just a few of the functions included in the standard equipment of the Mesutronic evaluation electronics. They form the basis for trouble-free and long-term stable operation – even in harsh industrial environments.
Remote control of the systems via Ethernet of CAN-Bus interface
Mesutronic metal detectors and metal separators can be networked and controlled by a central PC via Ethernet or CAN-Bus-interface.
A WLAN module is optionally available for wireless connection of the devices. The remote maintenance module mesuREMOTE from Mesutronic, allows professional support by the manufacturer.
Any choice of user language as required programmable, round up the image of a highest customer-focused and self-explanatory control electronic.
mesuNET: Remote monitoring via modem is one of MESUTRONIC’s services.
X-Ray inspection system for food industry
The X-Ray system conceived for the examination of packed products extends Mesutronic’s range of products for the food industry.
Even for newcomers to X-ray technology, this system represents the ideal entry into this method of foreign body control with its moderate price, high-quality and thus low-maintenance components, as well as extremely intuitive operation.
The system detects metallic and non-metallic contaminants such as glass, stones or plastics using an imaging technique – X-ray technology.
Compliant with common industry standards such as BRC or IFS as well as all legal standards; extensive reports and statistical functions help with the complete logging of all events.
The hygienic design from Mesutronic prevents the accumulation of liquids and product residues, thus inhibiting the growth of microbes.
The development work focused on the simple interaction of man and machine. A powerful industrial PC offers the user a clear operating interface, allowing intuitive operation of the unit.
All relevant functions,processes and recordings can be accessed on the high resolution, 15-inch touch screen with just a few steps. Various advanced image processing and detection algorithms round off the advantages of the and all of that at no additional cost.
Foreign body detectors by Mesutronic developed for food, snacks, pharmaceutical and hygiene industry assure constant quality and high production rates document your quality according to ISO 9000 and HACCP.
