Colombia is one of the continent’s most significant growing markets and the second-largest state in South America, after Brazil, with a population of over 50 million. The nation is distinguished by the over 6,000-meter-high Andes mountain peaks and its around 3,000 km of coastline that are split roughly evenly between the Pacific and Atlantic oceans. Postobón is the leading beverage manufacturer in Colombia, with exports to 27 countries worldwide. It is the country’s best-selling beverage manufacturer.
Along with water and soft drinks, its extensive and incredibly varied menu also consists mostly of juices, teas, energy drinks, beer, and coffee. In addition to bottling Heineken beers and Lipton Tea, the company also fills contracts for the bottling of Pepsi, Gatorade, Mountain Dew, and Seven Up. Twenty of its 71 locations are production facilities with room for over 100 filling lines, 20 of which are dedicated to PET bottle use. The capital Bogotá, home to ten million people, and Malambo, a northern Barranquilla neighbourhood, are the locations of the company’s two largest complexes. In Malambo, a greenfield project slated to contain eleven lines was started in 2018.
Three block systems from KHS

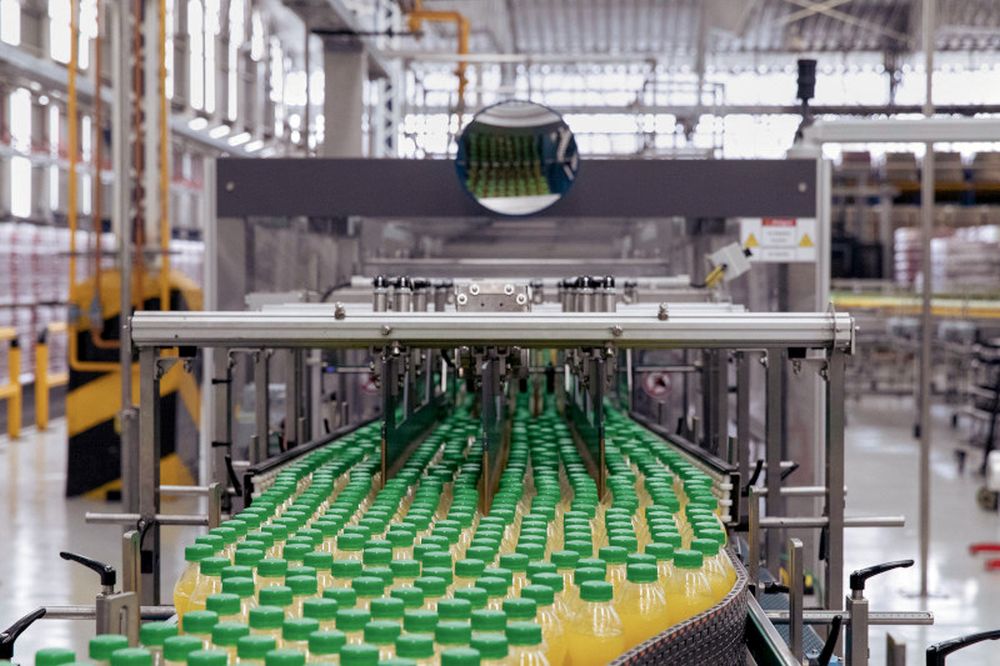

Whereas in the past Postobón’s long-term relations with KHS focused on the supply of stretch blow molders, in 2018 the Colombian bottler opted for its first block system from the Dortmund systems provider. The first procured line includes an InnoPET TriBlock for water in plastic containers that comprises a stretch blow molder, labeler and filler. At a maximum capacity of 54,000 bottles per hour, the line is technically convincing with its consistent neck handling from the preform to the bottled product. With the help of the experts from KHS’ Bottles & Shapes program, a 600-milliliter bottle was specifically developed for this application that saves on material and weighs no more than ten grams. One particularly remarkable attribute in the dry section of the line is the multifuel burner on the Innopack Kisters SP that enables the shrink tunnel to be flexibly heated by either natural or propane gas.

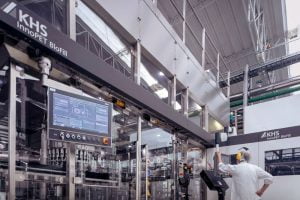

Postobón was so pleased with the quality and speed of the installation and the work performed by the team on site that it subsequently ordered not one but two more block systems within the space of just 18 months. The second KHS line went into operation in Bogotá in 2021. This is also a turnkey filling line where a BloFill duo block for the hot filling (HotFill+) of juice, tea and energy drinks with optional nitrogen dosing forms the heart of the line. Finally, the third KHS line was installed at the aforementioned site in 2023 – with a TriBlock for carbonated beverages such as Pepsi Cola. “We value KHS as one of the world’s most renowned manufacturers of plant engineering,” says César Bohórquez, who as national project manager for Postobón coordinates the implementation of all strategic growth projects. “We’re impressed by their pioneering technological standards for high-speed lines. We count on KHS with respect to the growth of our business as one of our key technology partners. They develop extensive and efficient systems for our processes that perfectly meet Postobón’s growth requirements.”
Hot fill highlight

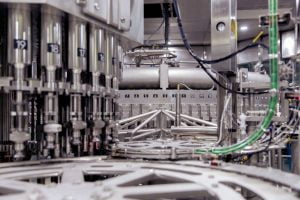

Technically speaking, the new HotFill+ line especially is a real highlight – for a number of reasons. At a rate of 2,250 0.5-liter bottles per hour and station it achieves an overall capacity of up to 54,000 containers per hour and is thus the fastest KHS line of its type to date worldwide. This is largely down to the reduced weight of the container design optimized by KHS’ Bottles & Shapes experts and extremely stable process control throughout the entire block. Thirteen products from three different categories are filled in eight formats holding between 200 milliliters and 1.5 liters on the highly flexible line. A filling valve specially developed for the customer can fill all beverages without the need for any format changeovers – regardless of whether these contain pulp or fruit fibers.
Sustainable and climate-friendly
It was important to the Colombians that the beverage containers use as little plastic as possible – and not just for financial reasons: besides quality and efficiency, sustainability and protection of the climate are further major issues the bottler invests considerable sums of money in. In 2021 alone, approximately US$30 million was spent on various social and environmental programs. Postobón’s biggest water brand Aqua Cristal, for example, is filled into bottles made entirely of recycled PET that themselves are fully recyclable. All told, the legal requirements for the avoidance of waste are more than met: for instance, the Colombians are proud of the fact that 72% of the packaging materials circulated by the company are recovered and reused. This figure even runs to 95% for glass bottles.
Any reduction in the amount of material used for the company’s PET bottles must not be allowed to have a detrimental impact on their stability, however. On the small-format bottles for juice and tea, whose weight has been cut from 22 to 20 grams, this is mainly prevented by nitrogen being injected into the head space, thus increasing the interior pressure in the container until it’s first opened. The six feet on the bottle base provide added rigidity and sturdiness.
Cutting-edge stretch blow molding technology
Further resources are saved with the help of KHS’ latest generation stretch blow molding technology. The focus heater on the near infrared or NIR heating system allows optimum use of the material directly below the preform neck ring for the bottle walls and is largely instrumental in helping to cut down on weight. While the stretch blow molds are heated to a high of 120°C, the neck ring and base are water-cooled down to 10 to 15°C. This adapts the properties of the container in such a way that filling at a beverage temperature of up to 85°C takes place with just a minimum of shrinkage.
The specific location of the production site meant that the bottles used for hot filling merited special attention and were subjected to an extensive validation process. Postobón’s products are filled in Colombia’s capital at an elevation of 2,600 meters and thus need to withstand particularly high internal pressures. This is because bottles from Bogotá are also supplied to the Colombian coast down at sea level; once unloaded, there still needs to be enough positive pressure in the containers to prevent them from deforming. “In Bogotá, for example, the boiling point of water drops to 92°C because of the extreme elevation,” explains Fernando Delgado, regional sales manager at KHS Andes. The bottle design thus needs to account for these physical challenges.
In addition to containers for hot filling with nitrogen, the experts at KHS also developed a classic hot-fill bottle with panels. The new Gatorade bottle for licensor PepsiCo has a flat base and vertical grooves that give it perfect stability without nitrogen having to be used during filling. Its weight has also been decreased from 26 to 24 grams.
“All of the KPIs we defined regarding cost, quality, efficiency and productivity have been kept to,” says Bohórquez happily and goes on to emphasize just how important the new system is. “With the new HotFill+ line from KHS we can boost our production of juice, tea and energy drinks by up to 54%. This gives us an increase in our total output of around 5%,” he smiles.
Solutions to meet all challenges
The third KHS line covers a further segment, processing not just water but also carbonated soft drinks. The line is built around an InnoPET TriBlock featuring a KHS roll-fed station for hot-melt wrap-around labeling, also for a maximum of 54,000 bottles an hour. Formats range from 300, 400 and 600 millimeters through 1.0 and 1.5 liters to the 2.5-liter container that’s very popular in Colombia.
“Each of our projects presents us with unique challenges,” Bohórquez sums up, looking back on the three new lines commissioned very quickly one after another. “In order to meet these, together with KHS we repeatedly look for and find solutions and synergies that take us a good step further towards reaching our ambitious strategic growth targets.”
The most recent project to come out of the two companies’ technological partnership is a new KHS InnoPET Blomax V stretch blow molder. Integrated into an existing PET line by Postobón’s own converter Iberplast at the Caloto bottling plant, with its 20 cavities it can produce up to 45,000 bottles per hour in sizes ranging from 500 milliliters to one liter. On the line the containers are filled with beverages such as juice, tea and energy drinks at temperatures of up to 85°C.
Innovation and expertise
“Postobón always wants to keep its equipment state of the art – especially with respect to using as little energy and as few energy resources as possible in order to reduce the impact on the environment,” says Delgado. In KHS the customer benefits from continuous innovation and in-depth expertise regarding hot filling, for example. This is a success factor that provides a solid basis for a genuine relationship of trust, he believes. “On the one hand, our recipe for success entails nurturing close relations by correctly anticipating the issues and questions a customer may have. On the other, we form a perfectly coordinated team made up of KHS colleagues situated both locally and at our headquarters in Germany. This is something a customer like Postobón is of course happy to profit from.”
